Areas, surfaces and voids
Areas measure surfaces on a calibrated sheet: flooring, paint, fireproofing, roofing or allowances. A void uses the same class as an area and subtracts from that class total.
Access and path
Path: project → Plan review → the Zone (Z) tool. A viewer may inspect; an editor or project administrator is required to create or delete an area. Accuracy depends entirely on the sheet scale.

Draw an area and its voids
- Check the scale against a known dimension. If scale is missing, points can be stored but no reliable surface can be calculated.
- Arm Zone (
Z), then enter a stable Zone class — the field suggestse.g. hardwood_floor. Grouping uses the exact name, so avoid spelling variants. - For a positive surface, leave Void / deduction (subtracts from its class) cleared. Click each outline point; Enter or a double-click closes the polygon. Backspace or Esc removes the last point, one point at a time; once the trace is empty, Esc puts the tool away.
- For a stairwell, shaft or exclusion, select Void / deduction, keep the exact same class and trace its outline.
- Check the area key, such as
P1-Z001, the square-foot value and the net class total in the Quantities drawer. Imperial or metric settings change display units; the geometry remains the same.
An area needs at least three points; the application says so rather than storing unusable geometry.
List, selection and corrections

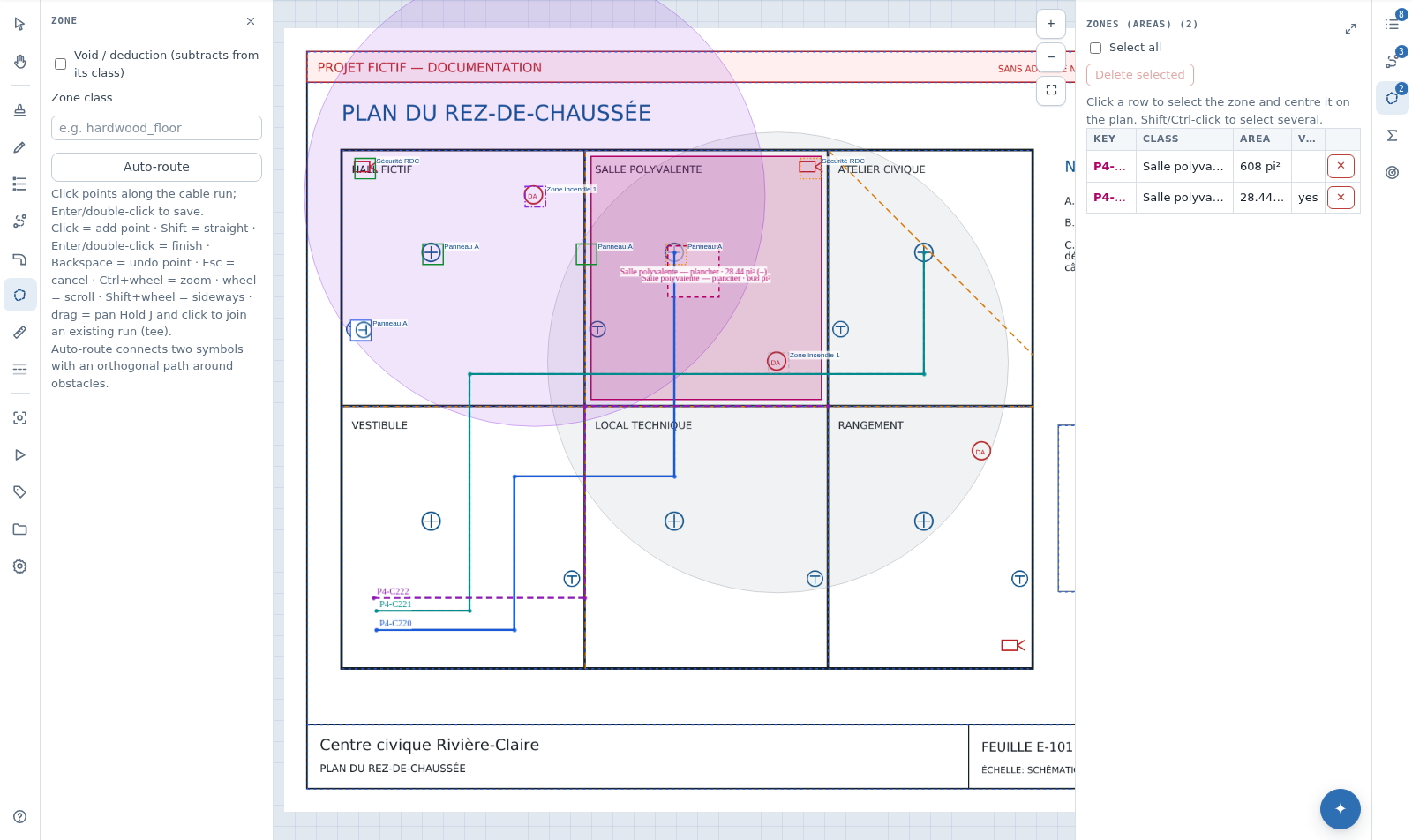

The Zones list button on the right rail opens the Zones (areas) drawer, which enumerates the sheet's zones: click a row to select the zone and centre it on the plan, pick several with Ctrl or Shift (or Select all), then delete one or a batch with Delete selected. The area follows your unit setting and deductions are marked. Ctrl+Z restores a deletion, batches included.
Right-click a zone for Select this zone in the list, Change class…, Void (deduction) — a checkable toggle —, Note… for your own remark, and Delete zone followed by its key. The Show zones (areas) switch under Options hides the polygons on screen without touching counts, prices or exports.
Pricing a surface
A recipe named class::area — for example hardwood_floor::area — is a per-square-foot recipe: each part quantity is multiplied by the zone's net area, voids deducted, and the line reaches the bill of materials and the estimate marked "surface". A recipe named exactly like the zone class works too, unless a symbol class has the same name: the symbol's per-device recipe is never applied per square foot, and renaming that symbol does not move the zone's recipe. A zone class with no recipe is not offered by Edit recipes: add #bom- followed by the recipe name to the Estimate page address (…/estimate#bom-hardwood_floor::area), or ask the AI assistant to create it, with your approval.
Zones traced on a non-calibrated page are not priced; the estimate says so instead of dropping them silently. Changing the scale recalculates values from the same points, so review every zone after a recalibration.
Limits and recovery
The points of a saved zone cannot be moved in the interface — a zone's context menu offers no point editing, unlike a cabling run. If the outline is wrong, delete the zone and draw it again. Avoid self-crossing outlines, duplicate points and voids that extend outside their area; they may yield an unexpected result even when the coordinates are valid.
Disabled sheets are excluded from takeoff and deliverables. The Excel workbook contains a Zones tab, and the cabling and piping PDF overlays polygons and voids on the plan; there is no standalone area CSV. If an area disappears from a total, first check the scale, the sheet's active state and the void's class name.
